Modbus / Modbus TCP Gateway

GT200-MT-2RS485
909-977-2988
WhatsApp

WhatsApp

+1-909-977-2988

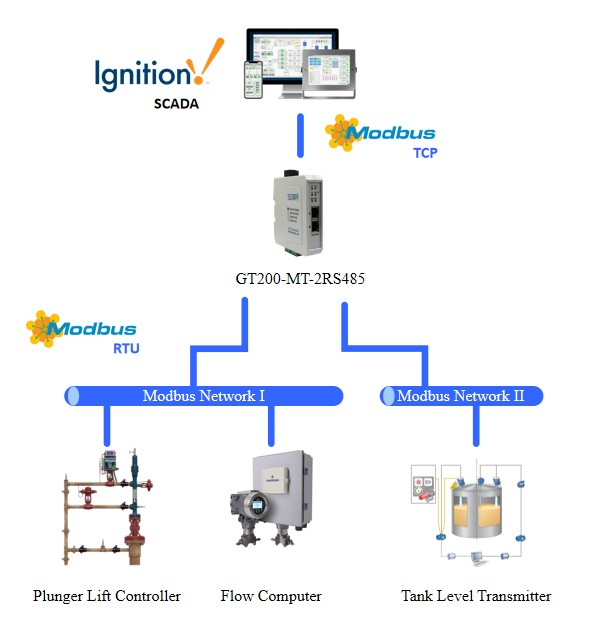

The GT200-MT-2RS485 is a high-performance industrial gateway designed to seamlessly connect modern Modbus TCP networks with legacy Modbus RTU/ASCII devices. Equipped with two industrial-grade RS485 serial ports, it enables reliable, bidirectional data communication between Ethernet-based systems and traditional serial field devices - ensuring smooth integration, enhanced system interoperability, and longer service life.

Technical Specifications:

1.   Protocol Conversion

        •  Seamless communication between Modbus TCP and Modbus RTU/ASCII.

2.   Modbus TCP Client Connections

        •  Supports up to 8 Modbus TCP Client devices simultaneously.

        •  Handles up to 48 simultaneous Modbus command requests.

3.   Modbus TCP Server Connections

        •  Supports up to 4 Modbus TCP Server devices (Unique IP addresses or Unique Unit IDs) simultaneously.

4.   Serial Communication (RS485)

        •  Two RS485 interfaces, half-duplex

        •  Supported baud rates: 1200, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 and 230400bps

        •  Parity options: None, Odd, Even, Mark, Space

        •  Stop bits: 1 or 2.

5.   Ethernet Ports

        •  Dual 10/100M adaptive Ethernet ports with built-in switch.

        •  Supports daisy chain connections and cascading.

6.   Slave ID Mapping

        •  Built-in Slave ID mapping function for flexible address translation.

7.   Network Security

        •  Configurable IP address whitelist for communication clients.

        •  Configuration login password protection for enhanced security.

8.   Power Supply

        •  Input: 24VDC (Range: 9V to 30V)

        •  Current: 110mA at 24VDC.

9.   Environmental Conditions

        •  Operating Temperature: -40°F to 185°F (-40°C to 85°C).

        •  Relative Humidity: 5% to 95% RH (non-condensing).

10.  Physical Specification

        •  Dimensions (W × H × D): 1.0in × 4.0in × 3.5in (25mm × 100mm × 90mm).

        •  Mounting: 35mm DIN rail.

        •  Enclosure Protection Rating: IP20.

11.  Configuration Software

        •  Comes with SST-MT-CFG configuration software for Windows and Ubuntu platforms.
