Modbus TCP Series

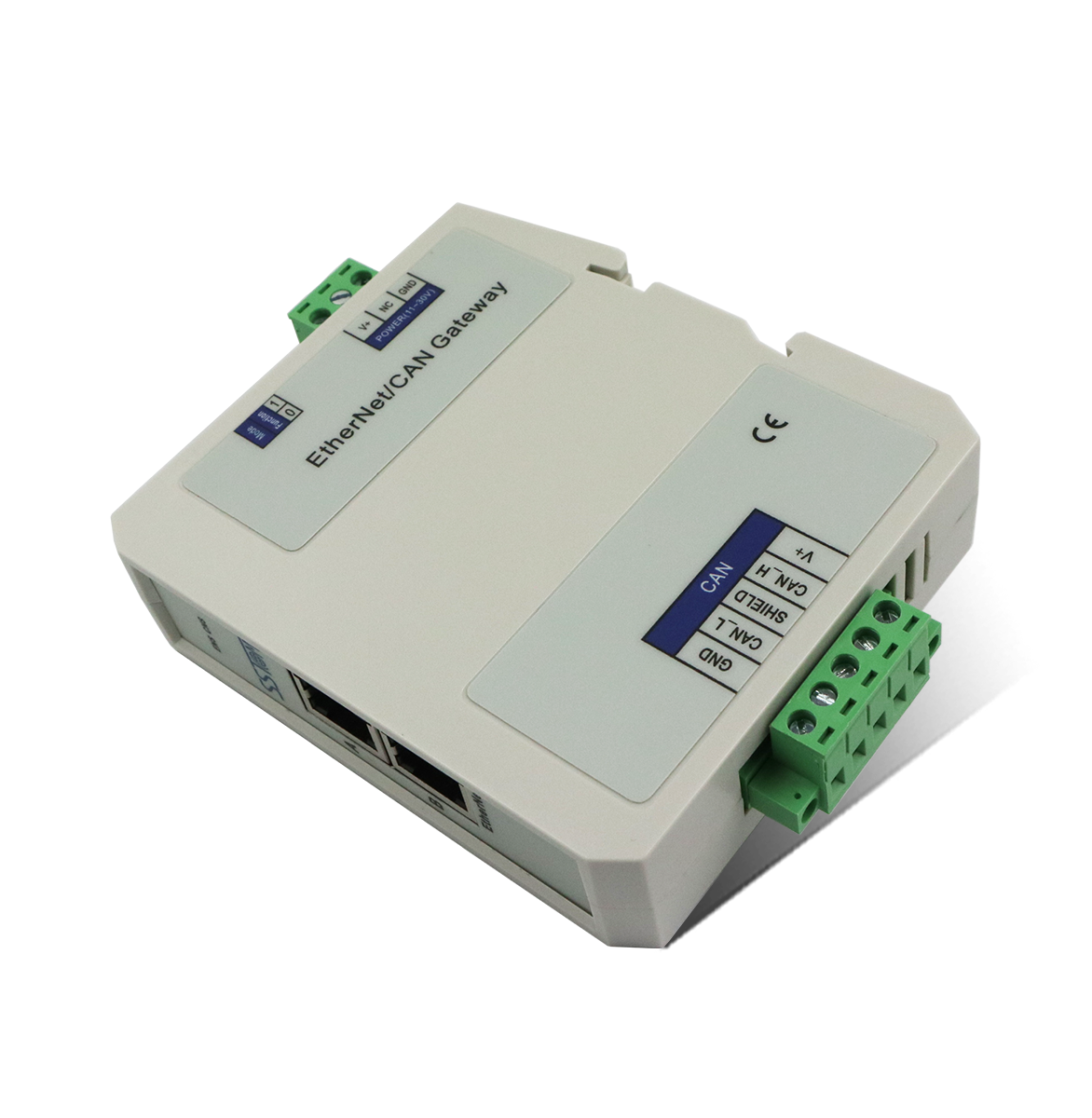

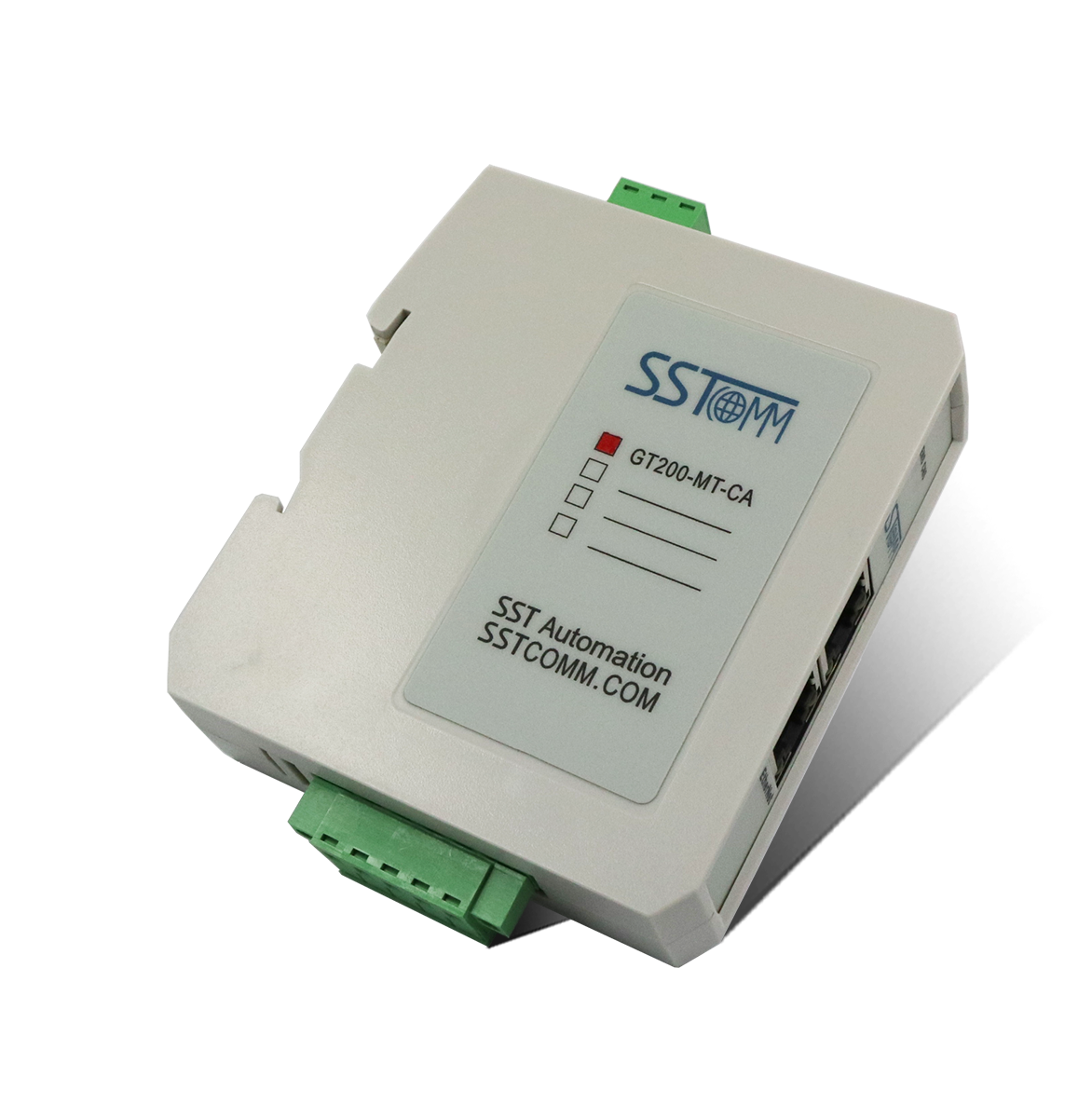

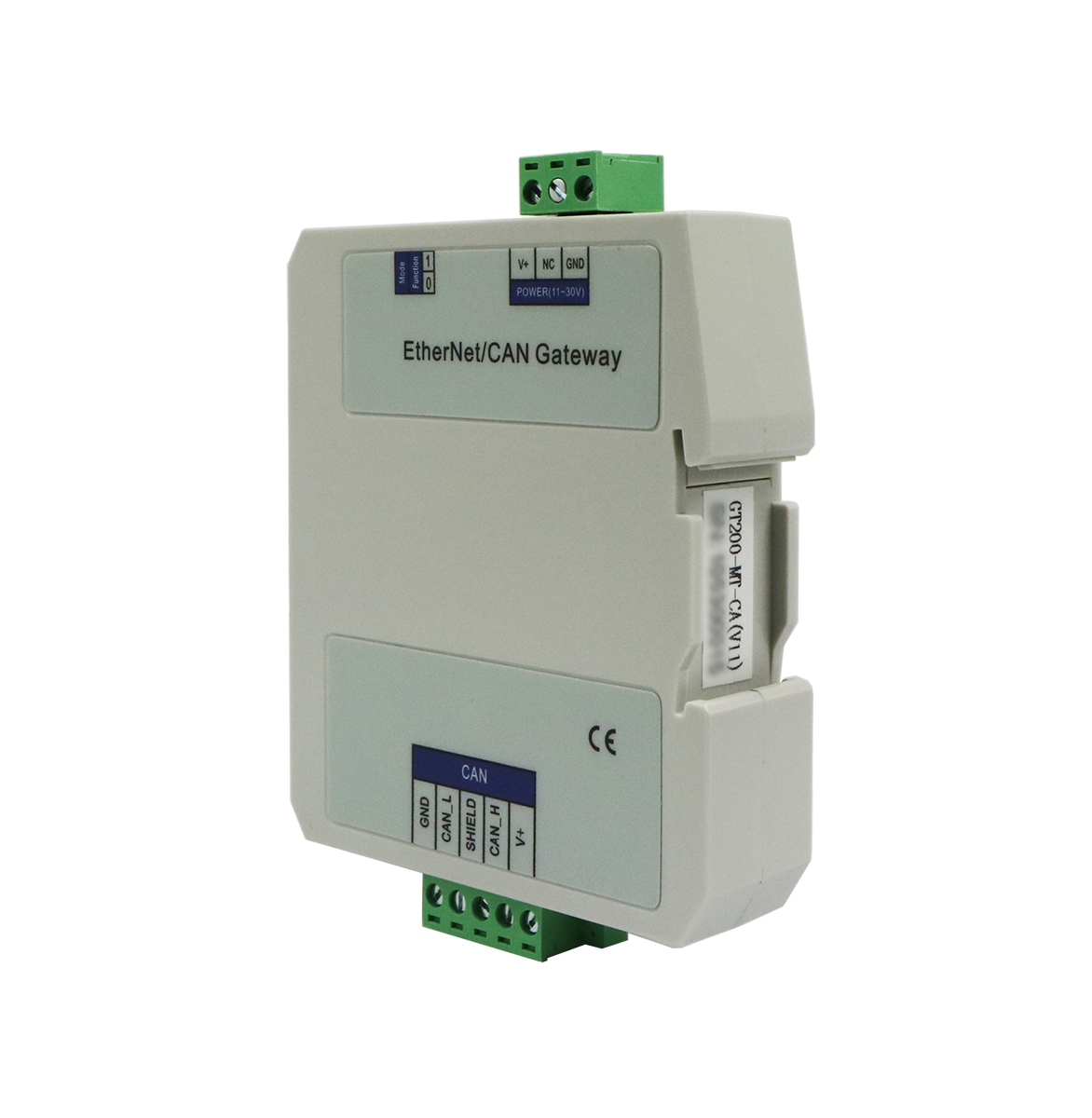

EtherNet / CAN Gateway
GT200-MT-CA V1.6
909-490-7557
+1-909-490-7557
The GT200-MT-CA enables seamless integration of CAN 2.0A/2.0B devices with Modbus TCP, TCP Server, TCP Client, and UDP networks, providing reliable and efficient data exchange across diverse industrial systems.
Out of stock. Use new version GT200-MT-CA instead.
$389.00
-
Technical Specification
-
Order Information
-
Download
-
Quick Start Guide
-
Selection Guide
-
Case Study
-
Related Products
-
Warranty & Service
Technical Specification:
1. Two 10M / 100M adaptive Ethernet port, half-duplex, full-duplex.
2. Supports CAN2.0A and CAN2.0B.
3. CAN Baud rate support 1M, 500K, 250K, 125K, 100K,50K, 20K, 10Kbps.
4. CAN act as slave (Modbus TCP server), support FC3, FC4, FC6, FC16, each 8 registers (16 bytes) constitute 1 CAN frame.
5. Modbus TCP server supports DHCP.
6. CAN act as TCP client or server and support 4 client connections, support for keep-alive, automatic detection of the presence of TCP connection.
7. Supports local port configuration.
8. Power supply: 24 VDC (11~30VDC), 80mA(24VDC).
9. Operating Temp.: -4°F to 140°F (-20ºC to 60ºC), Rel. Humidity: 5%-95%, non-condensing.
10. External dimensions (W*H*D): 1.0 in*4.0 in*3.6 in (25mm*100mm*90mm).
11. Installation: 1.38 in (35 mm) DIN rail.
12. Protection class: IP20.
